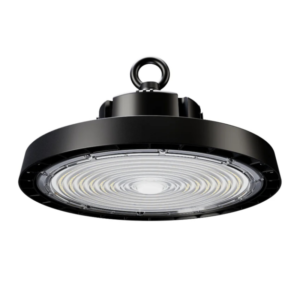

Ares Series LED High Bay Light
Description
A high bay light perfectly combine the fashion appearance & performance which is reserved with Zhaga socket together, customizable solutions for combining two fixtures, allowing for power expansion up to 300W/400W.
Features
- The lighting system provides three power options per module (100W, 150W, 200W), with the possibility of combining fixtures for increased output (up to 300W or 400W), suitable for special events.
- The standard luminaire solution provides IP40 protection, meeting the needs of most industrial scenarios. Additionally, we offer customizable IP65 protection for different usage scenarios, exclusively available for the lens option.
- The luminaire boasts compatibility with Zhaga Book 18, facilitating sensor interchangeability and tool-free installation, which enhances user convenience for expanding functionality.
- Optional microwave and PIR sensors, along with Casambi, Bluetooth Mesh, and Zigbee functions, offer limitless expansion possibilities for luminaire functionality.
- Compatible with microwave sensing function, making the lighting fixture more intelligent.
- 3 POWER-IN-1
- SENSOR VERSION Optional Smart Control Modules
160Im/W
SDCM<5
IP40/IP65
DALI Control
Dimming Control
Microwave Sensor
*Product Specifications
Wattage
60W/80W/100W, 90W/120W/150W, 110W/150W/200W (Lumen output selectable)
Light efficiency
150lm/W, 155lm/W, 160lm/W
Beam angle
90deg, 110deg, 30*110deg
Lumen Output
96,000 - 30,000 lm
Warranty
5 years
Certification
CE, RoHS, ErP
INSTALLATIONS
Ceiling mounted with bracket
Suspended
